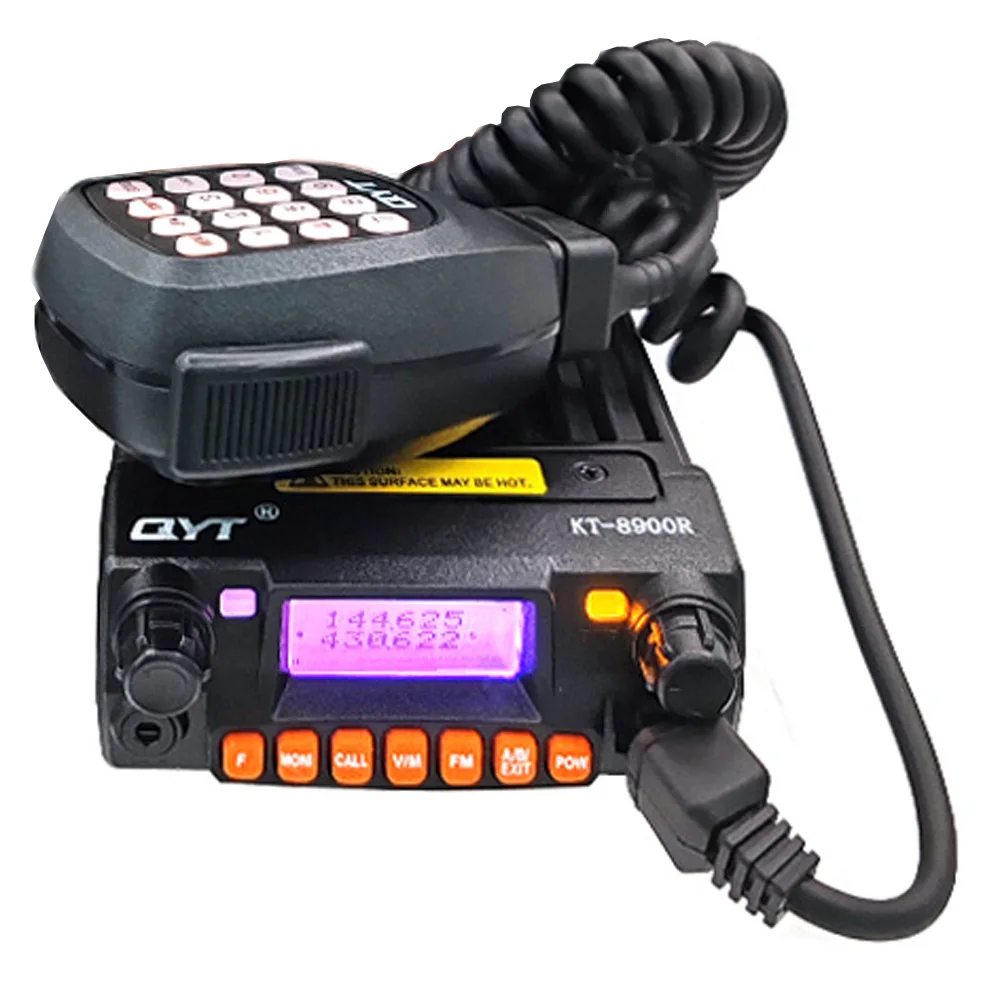

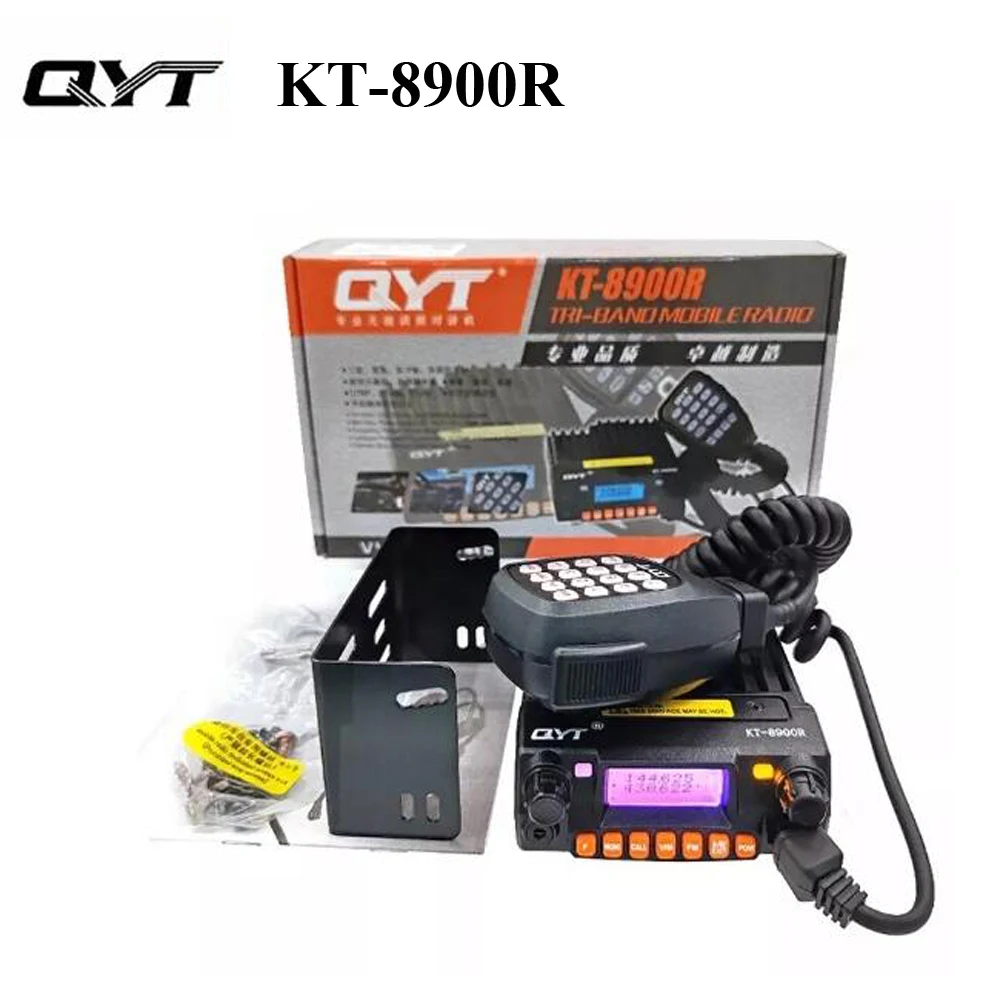

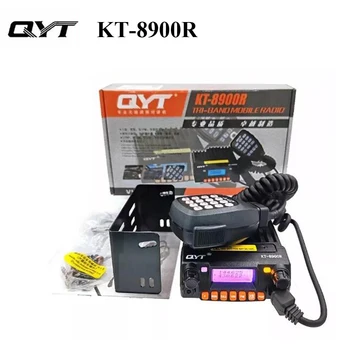

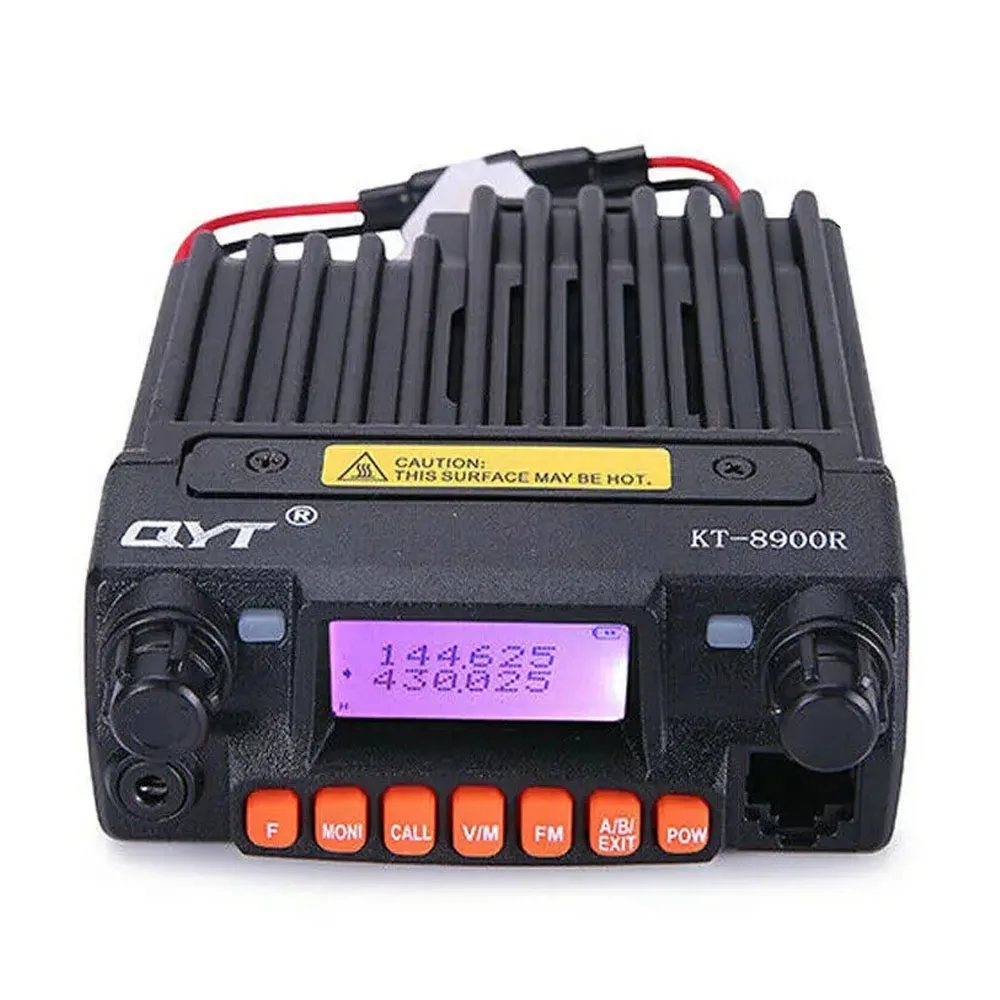

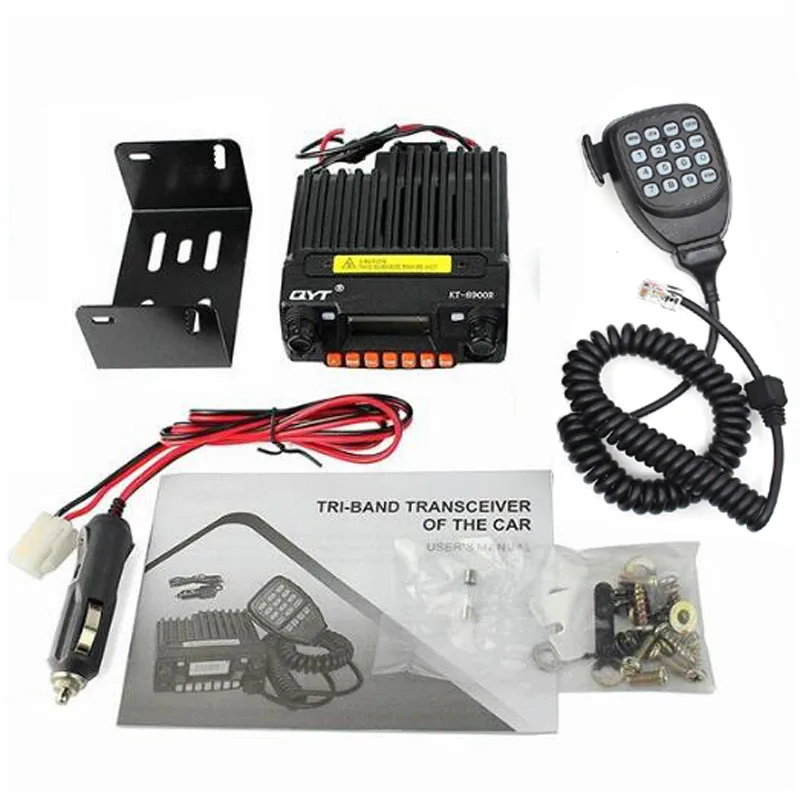

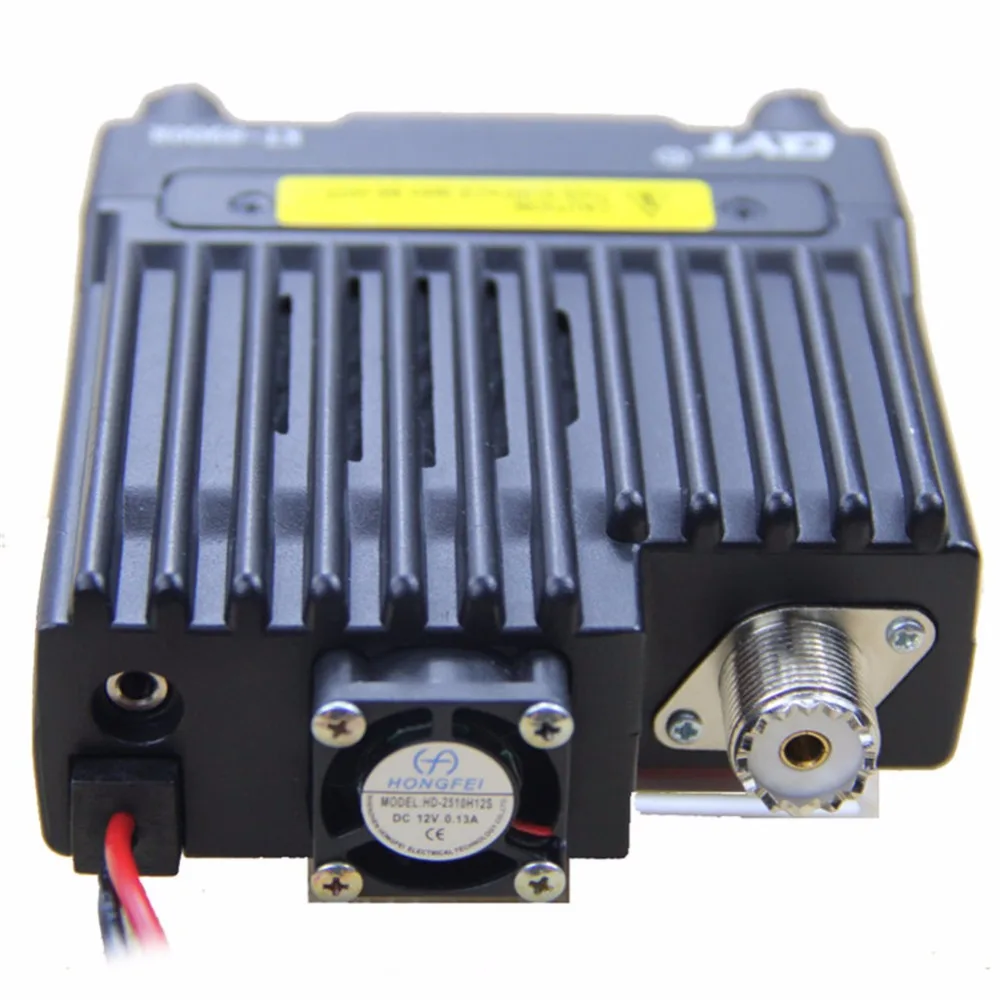

QYT KT-8900R 25W Mini Mobile Radio Tri Band 136~174MHz &240-260MHz& 400~480MHz Ham radio
Note: if you need the software, please contact us.
Product features :
1. KT -8900 QYT enhanced version
2. Tri – band VHF: 136-174 MHz, 240-260 MHz UHF : 400-480 MHz, FM: 76-108.900 Mhz
3. Comes with 2-Tone , 5-Tone , DTMF Functions
4. dual display , dual standby
6. Mini compact size , dimensions : 98 ( w ) x 35 ( h ) x 118 ( d ) mm
7. RF output power : 25 W / 20 W (VHF / UHF)
|
Item number |
KT8900R |
|
General |
|
|
Frequency Range |
VHF:136-174MHz 240-260MHz UHF:400-480MHz |
|
Number of Channel |
200 |
|
Channel Spacing |
25KHz 20K 12.5 |
|
Phase lock step |
5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz |
|
Working Voltage |
13.8V DC±15% |
|
Squelch way |
CTCSS/DCS/5Tone/2Tone/DTMF |
|
Frequency Stability |
±2.5ppm |
|
Operating Temperature |
-20~+60 |
|
Dimension(W x H x D) |
98(W) x 35(H) x 118(D)mm |
|
Weight |
408g |
|
Receiver |
||
|
Broadband |
Narrow band |
|
|
Sensitivity |
≤ 0.25μV |
≤ 0.35μV |
|
Channel choice |
≥70dB |
≥60dB |
|
Intermodulation |
≥65dB |
≥60dB |
|
Spurious Rejection |
≥70dB |
≥70dB |
|
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
|
Signal to noise ratio |
≥45dB |
≥40dB |
|
Audio distortion |
≤5% |
|
|
Audio output power |
≥2W@10% |
|
|
Transmitter |
||
|
Broadband |
Narrow band |
|
|
Output power |
25W/20W(VHF/UHF) |
|
|
Modulation Mode |
16KΦF3E |
11KΦF3E |
|
Channel Power |
≥70dB |
≥60B |
|
Signal to noise ratio |
≥40dB |
≥36dB |
|
Parasitic harmonic |
≥60dB |
≥60dB |
|
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
|
Audio distortion |
≤5% |
|
| Weight | 0.950 kg |
|---|---|
| Dimensions | 25 × 20 × 12 cm |
| Brand Name | QYT |
| Qyt Model | analog |
| Battery Capacity(mAh) | – |
| Origin | Mainland China |
| Waterproof / Water-Resistant | IP55 |
| Maximum Range | 10km-50km |
| Model Number | KT-8900R |
| Is_Display | Yes |
| Walkie Talkie Type | Car |
| Hign-concerned Chemical | None |
| Output Power(w) | 10w-25w |
| Material | Plastic+metal |
| Storage Channel | 200 |
| Frequency Range | VHF:136-174MHz 240-260MHz UHF:400-480MHz |
| Dimensions | 98 ( w ) x 35 ( h ) x 118 ( d ) mm |
| Certification | CE |
